Matrice de flux & Hardening
Ce document décrit les flux réseau autorisés entre les services et les règles de durcissement applicables à chaque VM.
Contexte : réseau plat
192.168.1.0/24, pas de VLANs. L'isolation est assurée par UFW sur chaque VM et par le firewall Proxmox sur les hyperviseurs.

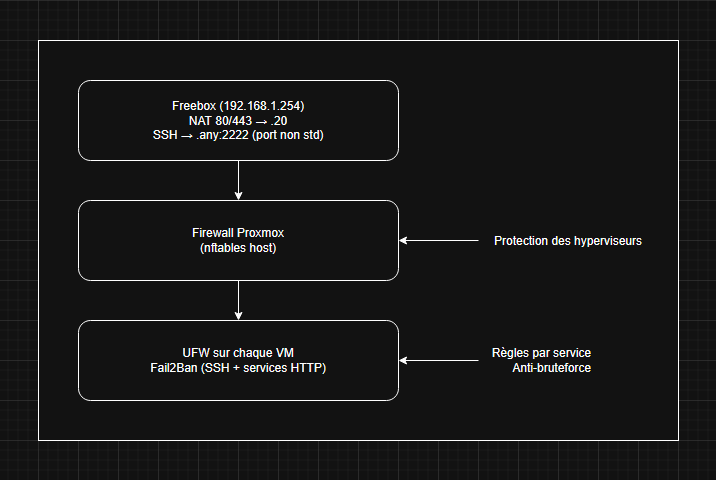

Architecture de sécurité
┌─────────────────────────────────────────────────────┐
│ Freebox (192.168.1.254) │
│ │ NAT 80/443 → .20 │
│ │ SSH → .any:2222 (port non std) │
└────────────────────┼────────────────────────────────┘
│
┌──────────┴──────────┐
│ Firewall Proxmox │ ← Protection des hyperviseurs
│ (nftables host) │
└──────────┬──────────┘
│
┌──────────┴──────────┐
│ UFW sur chaque VM │ ← Règles par service
│ Fail2Ban (SSH + │ ← Anti-bruteforce
│ services HTTP) │
└─────────────────────┘
En flat network, le firewall Proxmox ne peut pas intercepter le trafic entre VMs d'un même bridge — chaque VM est responsable de sa propre sécurité.
Règles UFW générales (toutes les VMs)
ufw default deny incoming
ufw default allow outgoing
ufw limit 2222/tcp comment 'SSH rate-limited port non standard'
ufw allow proto icmp comment 'ICMP'
Matrice des flux par VM
101 — traefik (192.168.1.20)
ufw allow 80/tcp comment 'HTTP - Let\'s Encrypt HTTP-01 fallback'
ufw allow 443/tcp comment 'HTTPS - Reverse proxy TLS'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local only'
| Direction | Source | Destination | Port | Règle |
|---|---|---|---|---|
| Entrant | Internet (Freebox) | traefik | 80, 443 | ✅ |
| Entrant | 192.168.1.0/24 |
traefik | 2222 | ✅ SSH |
| Entrant | Any | traefik | Autres | 🚫 |
| Sortant | traefik | Toutes VMs .21-.42 |
443 | ✅ Reverse proxy |
| Sortant | traefik | api.ovh.com |
443 | ✅ Challenge DNS LE |
Fail2Ban : logs d'accès Traefik — bannissement après 5 requêtes suspectes en 60s.
102 — gitlab (192.168.1.21)
ufw allow from 192.168.1.20 to any port 443 proto tcp comment 'Traefik reverse proxy'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local'
| Direction | Source | Destination | Port | Règle |
|---|---|---|---|---|
| Entrant | traefik | gitlab | 443 | ✅ Web UI / API |
| Entrant | 192.168.1.0/24 |
gitlab | 2222 | ✅ SSH |
| Entrant | Any | gitlab | Autres | 🚫 |
| Sortant | gitlab | vault | 8200 | ✅ Secrets pipelines |
| Sortant | gitlab | harbor | 443 | ✅ Push images |
| Sortant | gitlab | k3s-master | 6443 | ✅ API k3s |
| Sortant | gitlab | monitoring | 9090 | ✅ Métriques |
| Sortant | gitlab | deb.debian.org |
443 | ✅ APT |
Fail2Ban : logs GitLab (SSH Git + HTTP auth).
103 — vault (192.168.1.22)
ufw allow from 192.168.1.20 to any port 443 proto tcp comment 'Traefik reverse proxy'
ufw allow from 192.168.1.21 to any port 8200 proto tcp comment 'GitLab API'
ufw allow from 192.168.1.30 to any port 8200 proto tcp comment 'Harbor API'
ufw allow from 192.168.1.32 to any port 8200 proto tcp comment 'Keycloak API'
ufw allow from 192.168.1.40 to any port 8200 proto tcp comment 'k3s API'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local'
| Direction | Source | Destination | Port | Règle |
|---|---|---|---|---|
| Entrant | traefik | vault | 443 | ✅ Web UI |
| Entrant | gitlab / harbor / keycloak / k3s | vault | 8200 | ✅ API interne |
| Entrant | 192.168.1.0/24 |
vault | 2222 | ✅ SSH |
| Entrant | Any | vault | Autres | 🚫 |
201 — harbor (192.168.1.30)
ufw allow from 192.168.1.20 to any port 443 proto tcp comment 'Traefik reverse proxy'
ufw allow from 192.168.1.21 to any port 443 proto tcp comment 'GitLab push/pull'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local'
| Direction | Source | Destination | Port | Règle |
|---|---|---|---|---|
| Entrant | traefik | harbor | 443 | ✅ Web UI |
| Entrant | gitlab | harbor | 443 | ✅ Push/pull images |
| Entrant | 192.168.1.0/24 |
harbor | 2222 | ✅ SSH |
| Entrant | Any | harbor | Autres | 🚫 |
| Sortant | harbor | vault | 8200 | ✅ Secrets |
202 — monitoring — prometheus/grafana/loki (192.168.1.31)
ufw allow from 192.168.1.20 to any port 443 proto tcp comment 'Traefik - Grafana UI'
ufw allow from 192.168.1.21 to any port 9090 proto tcp comment 'GitLab - métriques'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local'
| Direction | Source | Destination | Port | Règle |
|---|---|---|---|---|
| Entrant | traefik | monitoring | 443 | ✅ Grafana UI |
| Entrant | gitlab | monitoring | 9090 | ✅ Métriques pipelines |
| Entrant | 192.168.1.0/24 |
monitoring | 2222 | ✅ SSH |
| Entrant | Any | monitoring | Autres | 🚫 |
| Sortant | monitoring | Toutes VMs | 9100 | ✅ Scrape node_exporter |
| Sortant | monitoring | k3s-master/workers | 10250 | ✅ Scrape kubelet |
| Sortant | monitoring | traefik | 80/443 | ✅ Blackbox exporter |
203 — keycloak (192.168.1.32)
ufw allow from 192.168.1.20 to any port 443 proto tcp comment 'Traefik reverse proxy'
ufw allow from 192.168.1.21 to any port 443 proto tcp comment 'GitLab OIDC callback'
ufw allow from 192.168.1.30 to any port 443 proto tcp comment 'Harbor OIDC callback'
ufw allow from 192.168.1.40 to any port 443 proto tcp comment 'ArgoCD OIDC callback'
ufw allow from 192.168.1.41 to any port 443 proto tcp comment 'k3s apps OIDC callback'
ufw allow from 192.168.1.42 to any port 443 proto tcp comment 'k3s apps OIDC callback'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local'
| Direction | Source | Destination | Port | Règle |
|---|---|---|---|---|
| Entrant | traefik | keycloak | 443 | ✅ Web UI |
| Entrant | gitlab / harbor / k3s | keycloak | 443 | ✅ OIDC callbacks |
| Entrant | 192.168.1.0/24 |
keycloak | 2222 | ✅ SSH |
| Entrant | Any | keycloak | Autres | 🚫 |
| Sortant | keycloak | vault | 8200 | ✅ Secrets OIDC |
204 — defectdojo (192.168.1.33)
ufw allow from 192.168.1.20 to any port 443 proto tcp comment 'Traefik reverse proxy'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local'
| Direction | Source | Destination | Port | Règle |
|---|---|---|---|---|
| Entrant | traefik | defectdojo | 443 | ✅ Web UI |
| Entrant | 192.168.1.0/24 |
defectdojo | 2222 | ✅ SSH |
| Entrant | Any | defectdojo | Autres | 🚫 |
301 — k3s-master (192.168.1.40)
ufw allow from 192.168.1.21 to any port 6443 proto tcp comment 'GitLab - kubectl'
ufw allow from 192.168.1.41 to any port 6443 proto tcp comment 'k3s worker01'
ufw allow from 192.168.1.42 to any port 6443 proto tcp comment 'k3s worker02'
ufw allow from 192.168.1.31 to any port 10250 proto tcp comment 'Prometheus kubelet'
ufw allow from 192.168.1.20 to any port 443 proto tcp comment 'Traefik Ingress'
ufw allow from 192.168.1.41 to any port 8472 proto udp comment 'Flannel VXLAN worker01'
ufw allow from 192.168.1.42 to any port 8472 proto udp comment 'Flannel VXLAN worker02'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local'
| Direction | Source | Destination | Port | Règle |
|---|---|---|---|---|
| Entrant | gitlab | k3s-master | 6443 | ✅ API Kubernetes |
| Entrant | k3s-worker* | k3s-master | 6443 | ✅ API |
| Entrant | monitoring | k3s-master | 10250 | ✅ Scrape kubelet |
| Entrant | k3s-worker* | k3s-master | 8472 | UDP ✅ Flannel |
| Entrant | traefik | k3s-master | 443 | ✅ Ingress |
| Entrant | 192.168.1.0/24 |
k3s-master | 2222 | ✅ SSH |
| Entrant | Any | k3s-master | Autres | 🚫 |
302 — k3s-worker01 (192.168.1.41) et 303 — k3s-worker02 (192.168.1.42)
ufw allow out to 192.168.1.40 port 6443 proto tcp comment 'k3s API'
ufw allow from 192.168.1.31 to any port 10250 proto tcp comment 'Prometheus kubelet'
ufw allow from 192.168.1.40 to any port 8472 proto udp comment 'Flannel VXLAN master'
ufw allow from 192.168.1.20 to any port 443 proto tcp comment 'Traefik Ingress'
ufw allow from 192.168.1.0/24 to any port 2222 proto tcp comment 'SSH local'
Hardening SSH (toutes les VMs)
Fichier /etc/ssh/sshd_config.d/hardening.conf :
Port 2222
PermitRootLogin no
PasswordAuthentication no
PubkeyAuthentication yes
MaxAuthTries 3
MaxSessions 2
ClientAliveInterval 300
ClientAliveCountMax 0
AllowUsers mounik
Déployé par Ansible sur toutes les VMs.
Firewall Proxmox
En complément du UFW de chaque VM, activer le firewall Proxmox :
# Activer au niveau datacenter
pvesh set /cluster/firewall/options --enable 1
# Règles au niveau du nœud (protection hyperviseur)
# /etc/pve/nodes/pve01/host.fw
[INCOMING]
ACCEPT -source 192.168.1.0/24 -p tcp -dport 22
ACCEPT -source 192.168.1.0/24 -p tcp -dport 8006
ACCEPT -source 192.168.1.0/24 -p tcp -dport 3128
DROP -log nolog
Ordre de déploiement des règles
- Proxmox : activer firewall hyperviseur
- OpenTofu : création des VMs avec cloud-init (clé SSH + UFW basique)
- Ansible — hardening de base : SSH (port 2222, clé uniquement), UFW (default deny), Fail2Ban (jail SSH)
- Ansible — services : installation et configuration de chaque service
- Ansible — affinage UFW : mise à jour des règles par service (ports applicatifs, sources autorisées)
